D32G-016.368M|6G模塊晶振|3225mm溫補晶振

編號：30068772
頻率：16.685MHz
尺寸：3.2×2.5mm

ConnorWinfield晶振,D32G有源晶振,D32G-016.368M晶振,3225mm晶振,石英貼片晶振,溫度補償晶體振蕩器,頻率16.368MHz,電壓3.3V,工作溫度-30~85°C,頻率穩定性0.5ppm,低抖動晶振,無鉛環保晶振,6G模塊晶振,北斗導航晶振,通...

分享到

D32G-016.368M|6G模塊晶振|3225mm溫補晶振,ConnorWinfield晶振,D32G有源晶振,D32G-016.368M晶振,3225mm晶振,石英貼片晶振,溫度補償晶體振蕩器,頻率16.368MHz,電壓3.3V,工作溫度-30~85°C,頻率穩定性0.5ppm,低抖動晶振,無鉛環保晶振,6G模塊晶振,北斗導航晶振,通信模塊晶振,儀器設備應用晶振.
D32G-016.368M|6G模塊晶振|3225mm溫補晶振特點：
•3.3 Vdc操作
•削波正弦波輸出邏輯
•頻率穩定性：0.50ppm
•溫度范圍: -30至85°C
•低抖動< 1ps RMS
•3.2×2.5mm SMT封裝
•符合RoHS標準/無鉛
•帶卷包裝

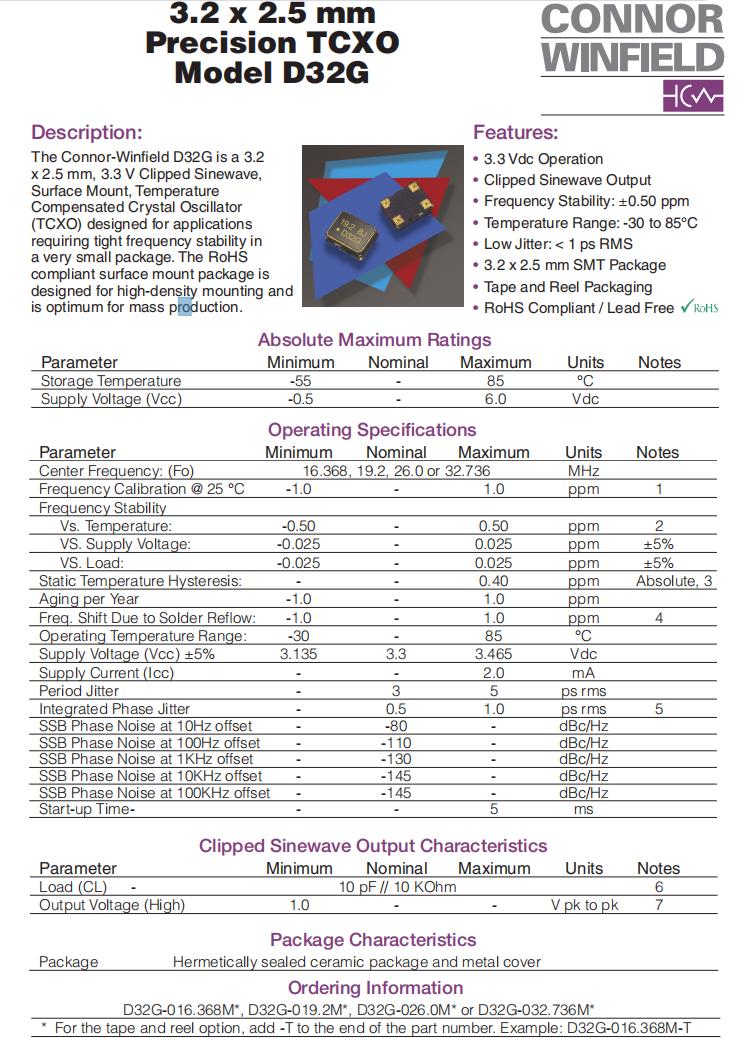

D32G-016.368M|6G模塊晶振|3225mm溫補晶振 參數表

項目	規格說明
額定頻率	16.368MHz
頻率公差 @ 25ºC	0.5 ppm
電源電壓變化(Vcc±5%)	±0.025ppm
負載系數(±5%）	±0.025ppm
電源電壓(Vcc)	3.3V
電源電流(Icc)	2mA Max
周期抖動	5ps rms Max
積分相位抖動(帶寬=12 Khz至20 MHz)	1ps rms Max
@ 10Hz offset SSB相位噪聲 @ 100Hz offset SSB相位噪聲 @ 1KHz offset SSB相位噪聲 @ 10KHz offset SSB相位噪聲 @ 100KHz offset SSB相位噪聲	-80dBc/Hz -110dBc/Hz -130dBc/Hz -145dBc/Hz -145dBc/Hz
輸入阻抗	50K Ohm
工作溫度	-30~+85°C
負載	10pF // 10 KOhm
每年老化	±1ppm
等效串聯電阻@ 25 °C	50 Ohms max.
儲存溫度	-55~125°C

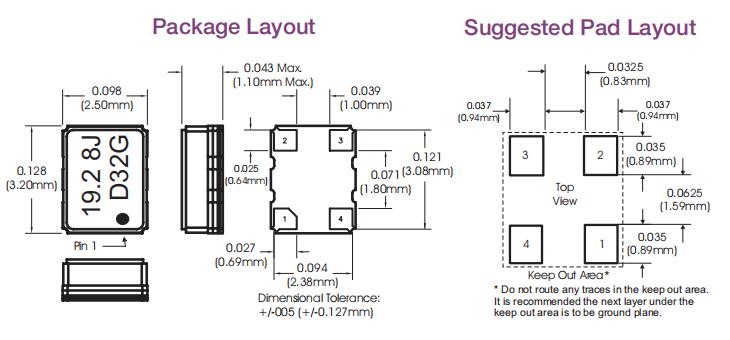

D32G-016.368M|6G模塊晶振|3225mm溫補晶振 尺寸圖
