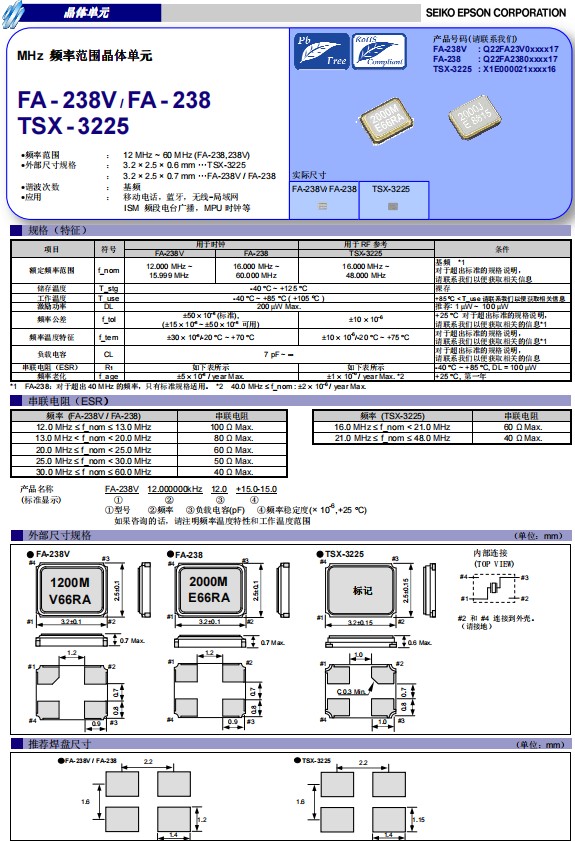

日本愛普生晶振FA-238V是一款小體積尺寸3.2x2.5mm四腳貼片晶振，無源晶振，石英晶體諧振器，F(xiàn)A-238V頻率范圍12.000MHz至15.9999MHz之間，可以在-40℃至+85℃（+105℃）溫度內穩定工作，該產品具有超小型，輕薄型，耐熱、耐振、耐沖擊等優良的耐環境特性，3225mm體積貼片晶振，該產品已被確定的高信賴性最適合用于汽車電子部件，在極端嚴酷的環境條件下也能發揮穩定的起振特性。滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。被廣泛用于移動通訊，智能手機，平板電腦，汽車電子，移動電話，無線藍牙，ISM頻段電臺廣播，MPU時鐘等.
無源晶振Q22FA23V0054800汽車電子中控專用晶振,Q22FA23V0051900,耐高溫晶振

產品編碼	貼片晶振	型號	頻率	負載電容	精度	頻率公差	工作溫度
Q22FA23V0001200	3.2x2.5x0.7mm	FA-238V	13.560000MHz	12pF	+/-50ppm	+/-30ppm	-40to+80°C
Q22FA23V0001800	3.2x2.5x0.7mm	FA-238V	12.288000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002200	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0002600	3.2x2.5x0.7mm	FA-238V	13.000000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002700	3.2x2.5x0.7mm	FA-238V	14.745600MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002800	3.2x2.5x0.7mm	FA-238V	12.000000MHz	15pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0002900	3.2x2.5x0.7mm	FA-238V	13.000000MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0003000	3.2x2.5x0.7mm	FA-238V	13.000000MHz	20pF	+/-30ppm	+/-50ppm	-20to+60°C
Q22FA23V0003300	3.2x2.5x0.7mm	FA-238V	12.288000MHz	12pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0003700	3.2x2.5x0.7mm	FA-238V	14.318180MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0004400	3.2x2.5x0.7mm	FA-238V	12.000000MHz	20pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0004800	3.2x2.5x0.7mm	FA-238V	13.000000MHz	7pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0005200	3.2x2.5x0.7mm	FA-238V	13.560000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0006800	3.2x2.5x0.7mm	FA-238V	14.318000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0006900	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-15ppm	+/-15ppm	-20to+70°C
Q22FA23V0008200	3.2x2.5x0.7mm	FA-238V	14.318180MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0008500	3.2x2.5x0.7mm	FA-238V	12.288000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0008600	3.2x2.5x0.7mm	FA-238V	14.745600MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0009500	3.2x2.5x0.7mm	FA-238V	12.000000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0010300	3.2x2.5x0.7mm	FA-238V	14.318180MHz	12.5pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0010600	3.2x2.5x0.7mm	FA-238V	12.000000MHz	11pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0010700	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-50ppm	+/-50ppm	-40to+85°C
Q22FA23V0011400	3.2x2.5x0.7mm	FA-238V	14.318180MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0011900	3.2x2.5x0.7mm	FA-238V	12.500000MHz	16pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0012300	3.2x2.5x0.7mm	FA-238V	13.560000MHz	12pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA23V0013100	3.2x2.5x0.7mm	FA-238V	12.000000MHz	18pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0013600	3.2x2.5x0.7mm	FA-238V	12.000000MHz	8pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0014400	3.2x2.5x0.7mm	FA-238V	12.000000MHz	10pF	+/-15ppm	+/-30ppm	-20to+70°C

Q22FA23V0048500	3.2x2.5x0.7mm	FA-238V	12.000000MHz	12pF	+/-10ppm	+/-20ppm	-10to+95°C
Q22FA23V0048600	3.2x2.5x0.7mm	FA-238V	14.745600MHz	10pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0049800	3.2x2.5x0.7mm	FA-238V	13.333000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0050400	3.2x2.5x0.7mm	FA-238V	12.288000MHz	8pF	+/-20ppm	+/-30ppm	-20to+70°C
Q22FA23V0050500	3.2x2.5x0.7mm	FA-238V	12.288000MHz	8pF	+/-20ppm	+/-20ppm	-20to+70°C
Q22FA23V0051300	3.2x2.5x0.7mm	FA-238V	15.980000MHz	8pF	+/-15ppm	+/-15ppm	-20to+70°C
Q22FA23V0051900	3.2x2.5x0.7mm	FA-238V	12.000000MHz	22pF	+/-20ppm	+/-20ppm	-30to+85°C
Q22FA23V0052100	3.2x2.5x0.7mm	FA-238V	12.000000MHz	20pF	+/-20ppm	+/-30ppm	-20to+70°C
Q22FA23V0052700	3.2x2.5x0.7mm	FA-238V	12.288000MHz	9pF	+/-20ppm	+/-20ppm	-20to+70°C
Q22FA23V0052900	3.2x2.5x0.7mm	FA-238V	12.000000MHz	12pF	+/-20ppm	+/-20ppm	-40to+85°C
Q22FA23V0053300	3.2x2.5x0.7mm	FA-238V	15.000000MHz	20pF	+/-18ppm	+/-22ppm	-40to+85°C
Q22FA23V0053400	3.2x2.5x0.7mm	FA-238V	12.000000MHz	20pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA23V0053600	3.2x2.5x0.7mm	FA-238V	13.107200MHz	12.5pF	+/-10ppm	+/-10ppm	-20to+60°C
Q22FA23V0053900	3.2x2.5x0.7mm	FA-238V	12.800000MHz	12pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0054800	3.2x2.5x0.7mm	FA-238V	12.000000MHz	20pF	+/-25ppm	+/-30ppm	-40to+85°C
Q22FA23V0055300	3.2x2.5x0.7mm	FA-238V	12.288000MHz	12pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA23V0056400	3.2x2.5x0.7mm	FA-238V	14.318000MHz	10pF	+/-15ppm	+/-30ppm	-20to+70°C
Q22FA23V0056500	3.2x2.5x0.7mm	FA-238V	14.745600MHz	10pF	+/-15ppm	+/-30ppm	-20to+70°C
Q22FA23V0056700	3.2x2.5x0.7mm	FA-238V	12.000000MHz	8pF	+/-50ppm	+/-30ppm	-40to+85°C
Q22FA23V0057200	3.2x2.5x0.7mm	FA-238V	15.750000MHz	10pF	+/-50ppm	+/-30ppm	-20to+70°C
Q22FA23V0057300	3.2x2.5x0.7mm	FA-238V	13.507600MHz	18pF	+/-15ppm	+/-30ppm	-20to+70°C
Q22FA23V0057500	3.2x2.5x0.7mm	FA-238V	12.500000MHz	7pF	+/-15ppm	+/-30ppm	-20to+70°C
Q22FA23V0057600	3.2x2.5x0.7mm	FA-238V	13.521270MHz	10pF	+/-20ppm	+/-22ppm	-40to+85°C
Q22FA23V0057700	3.2x2.5x0.7mm	FA-238V	12.288000MHz	12pF	+/-20ppm	+/-23ppm	-40to+85°C
Q22FA23V0057800	3.2x2.5x0.7mm	FA-238V	13.824000MHz	18pF	+/-10ppm	+/-10ppm	-20to+70°C
Q22FA23V0058200	3.2x2.5x0.7mm	FA-238V	12.000000MHz	16pF	+/-20ppm	+/-30ppm	-40to+85°C
Q22FA23V0058300	3.2x2.5x0.7mm	FA-238V	13.824000MHz	9pF	+/-10ppm	+/-30ppm	-20to+70°C
Q22FA23V0058400	3.2x2.5x0.7mm	FA-238V	12.000000MHz	15pF	+/-30ppm	+/-30ppm	-20to+70°C
Q22FA23V0058500	3.2x2.5x0.7mm	FA-238V	13.824000MHz	15pF	+/-10ppm	+/-16ppm	-30to+85°C
Q22FA23V0058600	3.2x2.5x0.7mm	FA-238V	12.000000MHz	15pF	+/-20ppm	+/-20ppm	-20to+70°C
Q22FA23V0058900	3.2x2.5x0.7mm	FA-238V	15.974400MHz	7pF	+/-50ppm	+/-50ppm	-30to+85°C

無源晶振Q22FA23V0054800汽車電子中控專用晶振,Q22FA23V0051900,耐高溫晶振

生活中常見的高檔游戲機、智能水表、藍牙耳機、電風扇等電子設備都需要用到各種不同類型的晶振，對比汽車的應用場景來看，汽車電子產品對晶振的需求就非常明顯了。

汽車的應用場景包括導航、遠程呼叫、緊急救援、防盜跟蹤、道路救援、電話、資訊娛樂、下載應用，自動駕駛等等，為了實現人與汽車系統自由的交互，并提供實時的信息互動、支付、交通、天氣等功能，汽車對車規級晶振的依賴只會越來越強。
